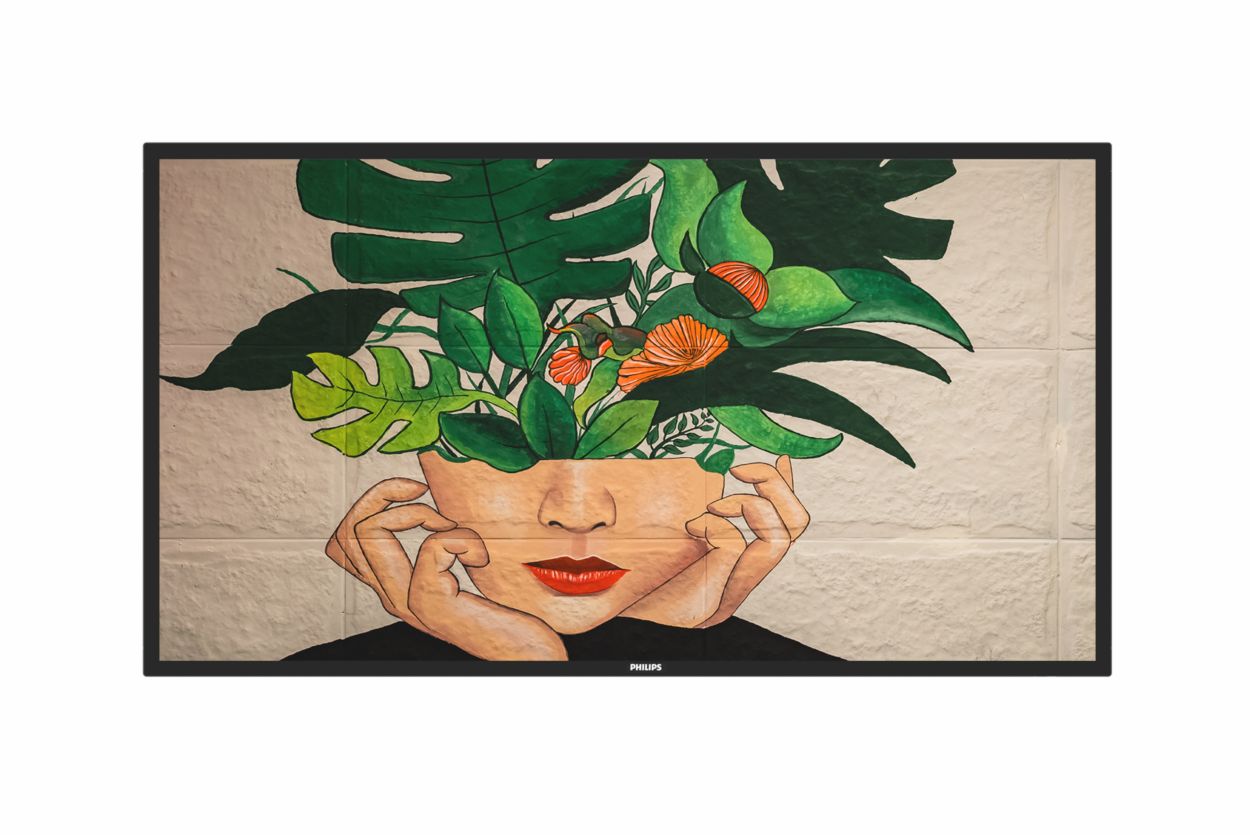

Signage Solutions D-Line Display

32BDL4510D/00

Say more

Make it stand out with a fast Philips D-Line Professional FHD display. Philips superb picture quality ensures true colors and intense contrast. You can effortlessly display content from multiple sources on a single screen.

Unfortunately this product is no longer available

Signage Solutions D-Line Display

Similar products

See all LED

Say more

Smart, fast 24/7 display.

  • 32"
  • Full HD (1920x1080p)
  • 400cd/m²
FailOver ensures content is always playing

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

SmartPower for energy saving

SmartPower for energy saving

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

Schedule what you want, when you want with SmartPlayer

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

ADS wide-view panel display

Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.

Technical Specifications

  • Connectivity

    Audio output
    3.5mm jack
    Video input
    • Display Port1.2 (x1)
    • DVI-I (x 1)
    • HDMI 2.0 (x2)
    • USB 2.0 (x2)
    Audio input
    3.5 mm jack
    Video output
    • DisplayPort 1.2 (x1)
    • HDMI 2.0 (x1)
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
  • Picture/Display

    Diagonal screen size (metric)
    81.28  cm
    Diagonal screen size (inch)
    32  inch
    Aspect ratio
    16:9
    Panel resolution
    1920x1080p
    Pixel pitch
    0.36375 x 0.36375 mm
    Optimum resolution
    1920 x 1080 @ 60Hz
    Brightness
    400  cd/m²
    Display colors
    16.7 million
    Contrast ratio (typical)
    1200:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Progressive scan
    Panel technology
    ADS
  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Screen saving functions
    Pixel Shift, Low Bright
    Keyboard control
    • Hidden
    • Lockable
    Signal loop through
    • RS232
    • IR Loopthrough
    • DisplayPort
    • HDMI
    Energy saving functions
    Smart Power
    Network controllable
    • RS232
    • RJ45
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Power

    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    40  W
    Consumption (Max)
    75 W
    Standby power consumption
    0.5 W
    Energy Label Class
    G
  • Supported Display Resolution

    Computer formats
    • 1024 x 768, 60Hz
    • 1280 x 1024, 60Hz
    • 1280 x 720, 60Hz
    • 1440 x 900, 60 Hz
    • 1600 x 900, 60Hz
    • 1680 x 1050, 60Hz
    • 1920 x 1080, 60Hz
    • 640 x 480, 60Hz
    • 800 x 600, 60Hz
    Video formats
    • 1080p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 480i, 60Hz
    • 480p, 60Hz
    • 576i, 50Hz
    • 576p, 50Hz
    • 720p, 50,60 Hz
  • Dimensions

    Set Width
    726.5  mm
    Product weight
    5.7  kg
    Set Height
    425.4  mm
    Set Depth
    65.1(@Wall mount)/69.1(@AC)  mm
    Set Width (inch)
    28.60  inch
    Set Height (inch)
    16.75  inch
    Wall Mount
    100(H) x 100(V) mm / 200(H) x 200(V) mm, M4
    Set Depth (inch)
    2.56 inch (@Wall mount) /2.72 (@AC))  inch
    Bezel width
    11.9 mm (T/L/R), 17.2 mm (B)
    Product weight (lb)
    12.57  lb
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Temperature range (storage)
    -20 ~ 60  °C
    Humidity range (operation)[RH]
    20 - 80% RH (No condensation)
    Humidity range (storage) [RH]
    20 - 80% RH (No condensation)
  • Multimedia Applications

    USB Playback Video
    • H.263
    • H.264
    • H.265
    • MPEG
    • VP8
    USB Playback Picture
    • BMP
    • JPEG
    • PNG
    USB Playback Audio
    • AAC
    • HEAAC
    • MPEG
  • Accessories

    Included accessories
    • Quick start guide
    • RS232 cable
    • AC Power Cord
    • HDMI cable
    • Remote Control & AAA Batteries
    Included Accessories
    • RS232 daisy-chain cable
    • Philips logo (x1)
    • Screws
    • USB Cover (x1)
    Stand
    BM05911(Optional)
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Spanish
    • Polish
    • Turkish
    • Russian
    • Italian
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    • Danish
    • Dutch
    • Finnish
    • Norwegian
    • Portuguese
    • Swedish
    Warranty
    3 year warranty
    Regulatory approvals
    • CE
    • CCC
    • RoHS
    • BSMI
    • CB
    • VCCI
    • CU
    • EMF
    • EnergyStar 8.0
    • ETL
    • FCC, Class A
    • PSB

What's in the box?

Other items in the box

  • Quick start guide
  • RS232 cable
  • AC Power Cord
  • HDMI cable
  • Remote Control & AAA Batteries
