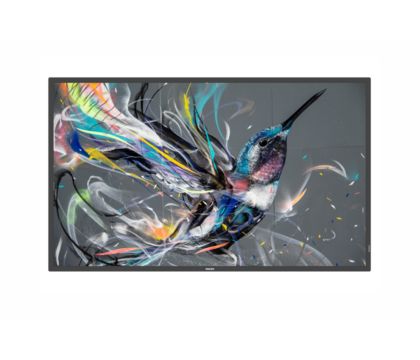

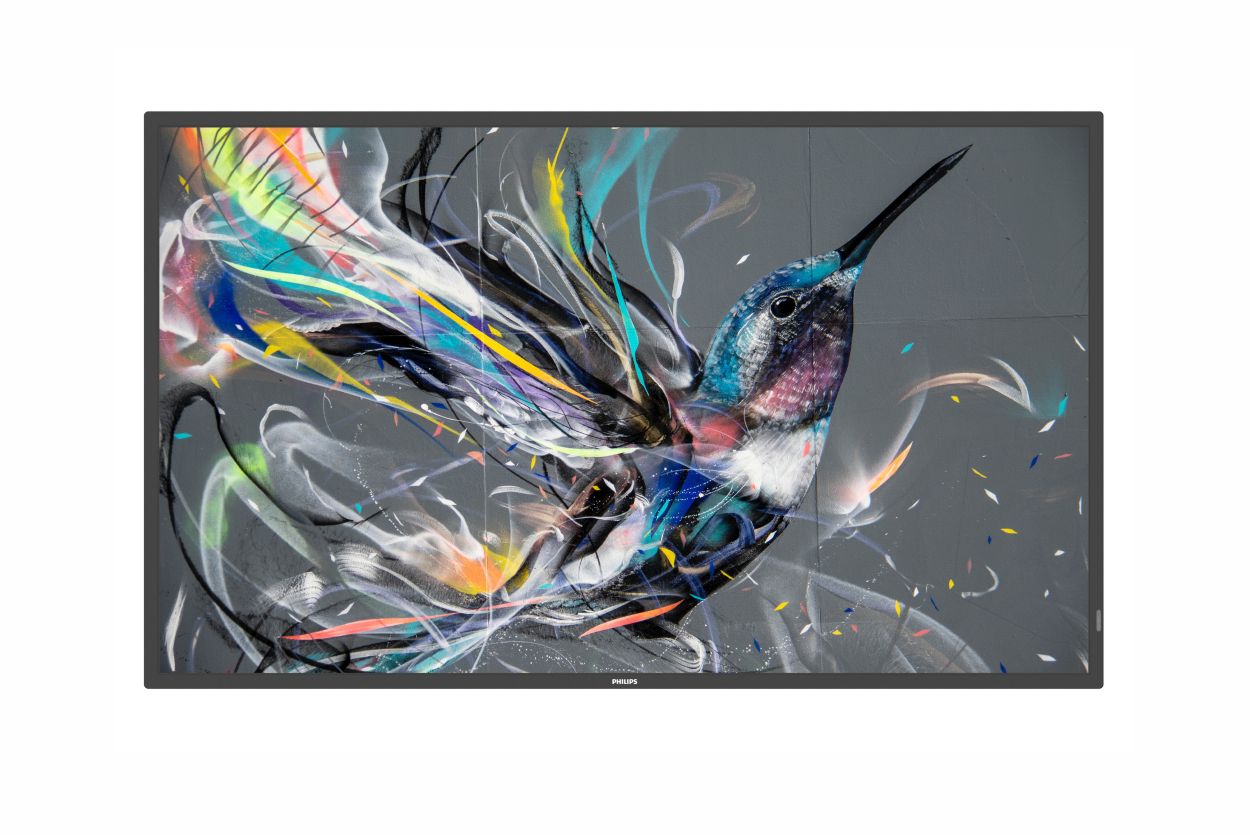

Signage Solutions Q-Line Display

65BDL3550Q/00

Stand out

Inform and enthrall with a Philips Q-Line Professional Ultral HD Display. This reliable solution can be up and running as quickly as you need.

See all benefits

Unfortunately this product is no longer available

Signage Solutions Q-Line Display

Similar products

See all LED

Stand out

Easy-setup 18/7 display.

  • 65"
  • Direct LED Backlight
  • Ultra HD
Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

CMND & Create. Develop and launch your own content

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

Integrated media player. Easily schedule USB content

Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Android SoC processor. Native and web apps

Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    163.9  cm
    Diagonal screen size (inch)
    64.5  inch
    Aspect ratio
    16:9
    Panel resolution
    3840 x 2160
    Pixel pitch
    0.372 x 0.372 mm
    Optimum resolution
    3840 x 2160 @ 60 Hz
    Brightness
    400  cd/m²
    Display colors
    1.07 Billion
    Contrast ratio (typical)
    1300:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    9  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    Panel technology
    IPS
    Operating system
    Android 8.0
    Clinical image
    D-Image preset (dicom part 14 compatible)
  • Connectivity

    Audio output
    3.5mm jack
    Video input
    • DVI-D (x1)
    • HDMI 2.0 (x3)
    • USB 2.0 (x2)
    • VGA (Analog D-Sub) (x1)
    Audio input
    3.5 mm jack
    External control
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
    • RJ45
  • Convenience

    Placement
    • Landscape (18/7)
    • Portrait (18/7)
    Tiled Matrix
    Up to 15 x 15
    Keyboard control
    • Hidden
    • Lockable
    Remote control signal
    Lockable
    Signal loop through
    • RS232
    • IR Loopthrough
    Ease of installation
    Smart Insert
    Energy saving functions
    Smart Power
    Network controllable
    • RS232
    • RJ45
    Start-up
    • Switch on delay
    • Switch on status
    • Boot on source
    Start-up window
    enable / disable Philips logo
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Power

    Mains power
    100 - 240V~, 50/60Hz
    Consumption (Typical)
    155  W
    Consumption (Max)
    210 W
    Standby power consumption
    <0.5W
    Power Saving Features
    Smart Power
    Energy Label Class
    G
  • Supported Display Resolution

    Computer formats
    • 1920 x 1080, 60Hz
    • 1680 x 1050, 60Hz
    • 1600 x 1200, 60Hz
    • 1440 x 900, 60Hz
    • 1280 x 1024, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 720, 60Hz
    • 1152 x 870, 75Hz
    • 1024 x 768, 60, 70, 75Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 720 x 400, 70Hz
    • 640 x 480, 60, 67, 72, 75Hz
    • 1152 x 864, 75Hz
    • 832 x 624, 75Hz
    Video formats
    • 3840 x 2160, 60Hz
    • 3840 x 2160, 30Hz
    • 576p, 50Hz
    • 576i, 50Hz
    • 480p, 60Hz
    • 480i, 60Hz
    • 1080p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 720p, 50,60 Hz
  • Dimensions

    Set Width
    1462.3  mm
    Product weight
    27.80  kg
    Set Height
    837.3  mm
    Set Depth
    68.9mm(D@wall mount) / 89.9mm(D@handle)  mm
    Set Width (inch)
    57.57  inch
    Set Height (inch)
    32.96  inch
    Wall Mount
    400 x 400 mm, M8
    Set Depth (inch)
    2.71(@ wall mount) / 3.54(@ handle)  inch
    Bezel width
    14.9 mm (Even bezel)
    Product weight (lb)
    61.29  lb
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    30,000  hour(s)
    Temperature range (storage)
    -20 ~ 60  °C
    Humidity range (operation)[RH]
    20 ~ 80% RH (No condensation)
    Humidity range (storage) [RH]
    5 ~ 95% RH (No condensation)
  • Multimedia Applications

    USB Playback Video
    • MPEG
    • H.264
    • H.263
    • H.265
    USB Playback Picture
    • BMP
    • JPEG
    • PNG
    USB Playback Audio
    • AAC
    • HEAAC
    • MPEG
  • Internal Player

    CPU
    • Dual core cortex A53 1.1G Hz
    • Dual core cortex A73 1.15G Hz
    GPU
    ARM Mali G51
    Memory
    • 2GB DDR3
    • 8GB
  • Accessories

    Included accessories
    • AC Power Cord
    • RS232 cable
    • Remote Control
    • Batteries for remote control
    • Quick start guide
    Included Accessories
    • IR sensor cable (1.8 m) (x1)
    • RS232 daisy-chain cable
    • M3 screw (x2)
    • Philips logo (x1)
    • USB Cover (x1)
  • Miscellaneous

    On-Screen Display Languages
    • Simplified Chinese
    • Traditional Chinese
    • English
    • French
    • German
    • Italian
    • Polish
    • Russian
    • Spanish
    • Turkish
    • Japanese
    • Arabic
    Warranty
    3 year warranty
    Regulatory approvals
    • CE
    • CB
    • BSMI
    • CU
    • EPA
    • ETL
    • FCC, Class A
    • PSB
    • VCCI
    • J-Moss

What's in the box?

Other items in the box

  • AC Power Cord
  • RS232 cable
  • Remote Control
  • Batteries for remote control
  • Quick start guide
