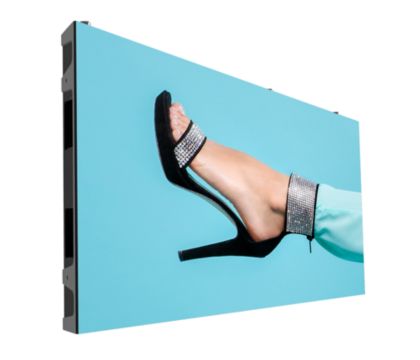

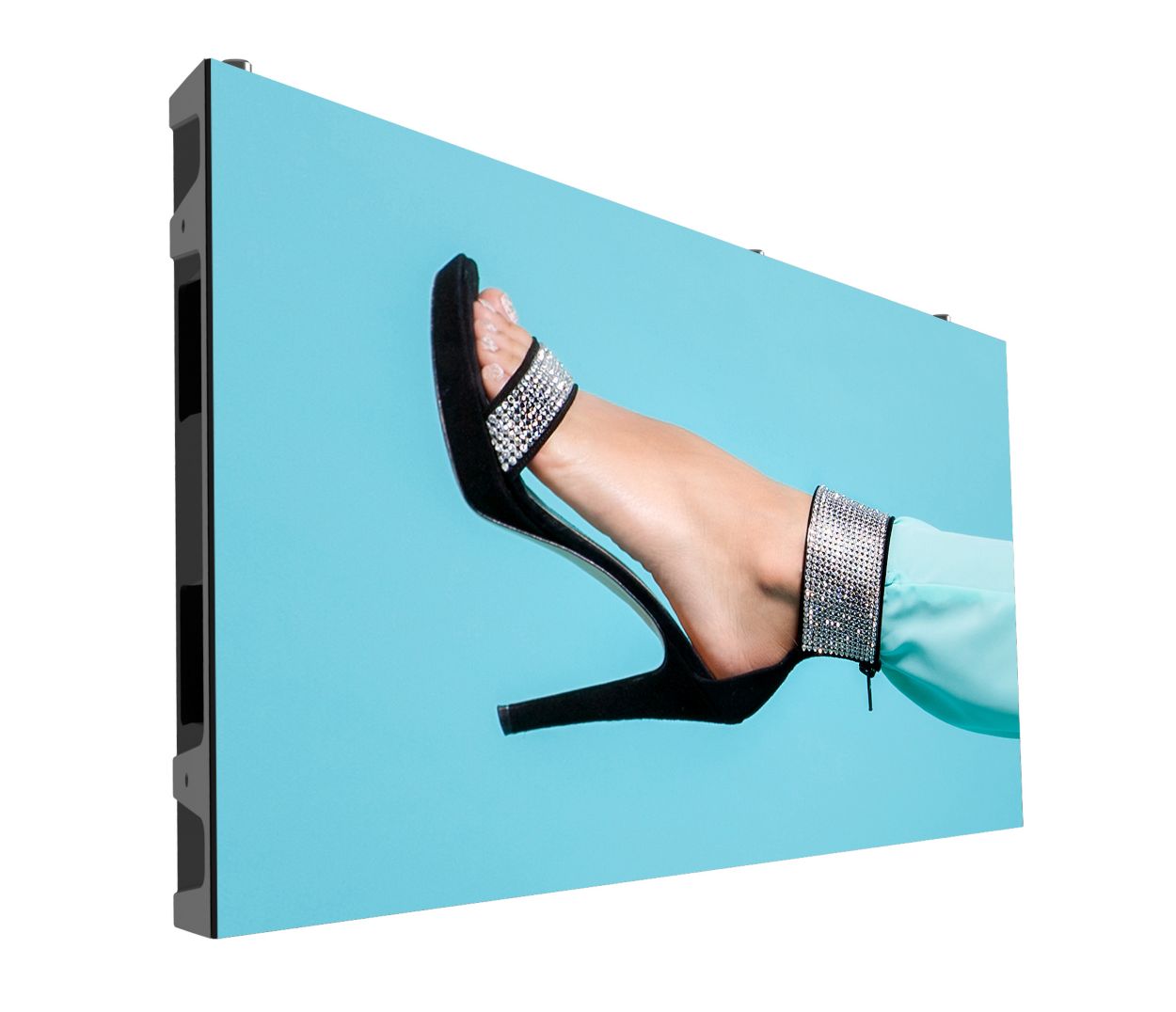

Signage Solutions LED Display

31BDL7324L/00

Signage Solutions LED Display

31BDL7324L/00

Unleash your imagination even more

No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Unfortunately this product is no longer available

Signage Solutions LED Display

Unleash your imagination even more

No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Unleash your imagination even more

No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Unfortunately this product is no longer available

Signage Solutions LED Display

Unleash your imagination even more

No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Similar products

See all L-Line series

Unleash your imagination even more

LED Display for every form and shape

  • 31''
  • Direct View LED

Forms any shape, L-shape corner, or curvature

The Philips L-Line 7000 series LED panles come with a height of 25 cm and are available in 50 cm, 75 cm and 100 cm widths. These displays are ready to be installed in any landscape format with no limitations to size. Also available with bevelled corners to form curved designs in both convex and concave formats.

Philips Active Health Monitoring

Achieve perfection through precision. Active Health Monitoring makes maintenance fast, simple, and predictable by displaying the exact item of failure and location. Utilising this software that works in real-time both online and offline, replacing the relevant part becomes an efficient process, and a must for display owners with many geographical locations.

Factory calibrated

Every Philips L-Line LED panel is calibrated in our factory under perfect circumstances. That means there's no need for further calibration on location, resulting in quicker installations. Calibration and configuration files are available to ensure fast maintenance.

Dynamic Panel Connect

Mix and match each of the Philips L-Line 7000 LED panel sizes to form a single display of any shape and dimension. Dynamic flexible alignment pins ensure a perfect fit in any circumstance - resulting in a smooth, seamless display surface. For added convenience and efficiency, each LED panel features openings on each side to allow for versatile wired connection between the LED panels and any external input connection. Openings on the top and bottom of the LED panel can be popped out in case access is only available from the top or bottom of the panel.

Optional bevelled corners allow curved displays

Create bezel-free displays of any shape, size or resolution. The modular design of Philips Professional LED panels means you can adapt to any space. Build vast, immersive installations or assemble intriguing patterns. Easily create displays that flow seamlessly around doorways and other openings. Even corners and curved displays become easy to create with the new Philips 7000 series.

Seamless linking for perfect imagery

Your Philips Professional LED Display features built-in cable wiring to keep power and data cables tidy. Display panels are daisy-chained for both power and data, allowing you to minimise clutter and speed up installation.

Dynamic Power Saving

Philips Professional LED Displays use high-performance LEDs, which are tested thoroughly, energy efficient and cost effective. Furthermore, enhanced technology allows the display to dynamically save on power consumption.

Conformal coating and ingress protection

Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion.

High brightness: 1200 nits / peak 1600 nits

Fire retardant design slows down the spread of flames in the event of fire, and help protect the structural integrity of the LED panel in case of fire. Tested and certified with European standard B1 DIN4102, British standard (BS476-7), and North-American standard UL94.

Available in 3 dimensions

Patented easy-mount brackets make installation even faster. These optional items are available for flat LED mounting, convex curved (177.5/175/172.5 degree), and L-shape 90 degree corners.

Technical Specifications

  • Picture/Display

    Color temperature default
    6500±500 K
    Color temperature adjust range
    4000~9500 K (by software)
    Viewing angle (horizontal)
    160  degree
    Viewing angle (vertical)
    160  degree
    Calibration(brightness/color)
    Supported
    Refresh rate(Hz)
    2100~3900 (14 bits: 3900Hz)
    Frame frequency (Hz)
    50 & 60
    Aspect ratio
    3:1
    Picture enhancement
    Wide color gamut display
    Placement
    Landscape
    Usage
    Indoor
    Brightness uniformity
    >=97%
    Brightness before calibration
    1200 nits
    Brightness after calibration
    900 nits
    Contrast ratio (typical)
    3500:1
  • Convenience

    Signal control loop through
    RJ45
    Ease of installation
    • Guide pins
    • Light weight
    Power loop through
    For 230V environments: 12 cabinets or less, for 110V environments: 6 cabinets or less, 10A max
  • Operating conditions

    Temperature range (operation)
    -20~45  °C
    Temperature range (storage)
    -20~50  °C
    Humidity range (operation)[RH]
    10~80%
    Humidity range (storage) [RH]
    10~85%
  • Power

    Input voltage
    AC100~240V (50 & 60Hz)
    Max. power cons. BC (W)
    <115
    Typical power cons. (W)
    <31.67
    Black screen power cons. (W)
    <10
    Max. power cons. AC (W)
    <95
  • Miscellaneous

    Warranty
    2 years
    Regulatory approvals
    • EN55032
    • EN55035
    • EN61000-3-2
    • EN61000-3-3
    • IEC/UL60950
    • IEC/UL62368
    • IEC62471
    • RoHS
    • FCC SDOC, Part 15, Class A
    Fire retardancy certification
    • BS 476 Part7:1997
    • UL94
    • DIN4102-1
    Conformal coating
    hub board, backside LED module
  • Cabinet

    Cabinet size (mm)
    750x250x40
    Side angle (degree)
    45
    Cabinet diagonal (inch)
    31.1"
    Cabinet resolution (W x H)
    312x104
    Weight (KG)
    4.57 (±230g)
    Cabinet pixels ( Dot )
    32.448
    Cabinet area (m2)
    0.1875
    Power connector
    3 core socket (C14 in, C13 out)
    Data connector
    RJ45
    Cabinet construction
    Die-Casting Aluminum
    Receiving card quantity
    1 pcs
    Receiving card spec.
    A5S plus
    Receving card brand
    NovaStar
  • Module

    LED type
    SMD 1515 Copper wire
    Pixel constitution
    1R1G1B
    LED lifetime(Hrs)
    100,000 at half brightness
    Pixel pitch (mm)
    2.4
    Module resolution (WxH pixels)
    104x104
    Module size (WxH in mm)
    249.9*249.9
  • Accessories

    Power cable
    2 pcs
    LAN cable (RJ45, CAT-5)
    2 pcs
    QSG
    1 pcs
  • Packaging Data

    Dimension of packaging (mm)
    1056x392x221
